Multitek

1.5 cords per hour
25hp Kubota Diesel
12ft max log length
18in max log diameter

High Capability in a Small Package

The 1610EZ can easily be towed behind a pick-up truck and includes standard features for rapid deployment.  This processor is designed for the highly mobile firewood producer or growing firewood business owner.  It is also a superb rental unit that is capable of nearly anything a homeowner can throw at it.

STANDARD FEATURES

20” BAR SAW
The 20” bar saw is hydraulically powered and cuts logs with the flick of a joystick.  With a standard 3/8” pitch chain, this feature keeps costs low and allows you to sharpen and reuse chains for maximum life.

HYDRAULIC LOG CLAMP
A hydraulic log clamp holds the log in place as the bar saw makes a cut, ensuring the log does not jump.  The clamp is especially helpful for the trim cut, as it can grab the last piece just before it falls into the splitting chamber.

HYDRAULICALLY ADJUSTABLE WEDGE
The 1610EZ features a hydraulically adjustable wedge that allows you to center your split.  By simply moving a joystick, you can avoid the long process of resplitting pieces that are too large.

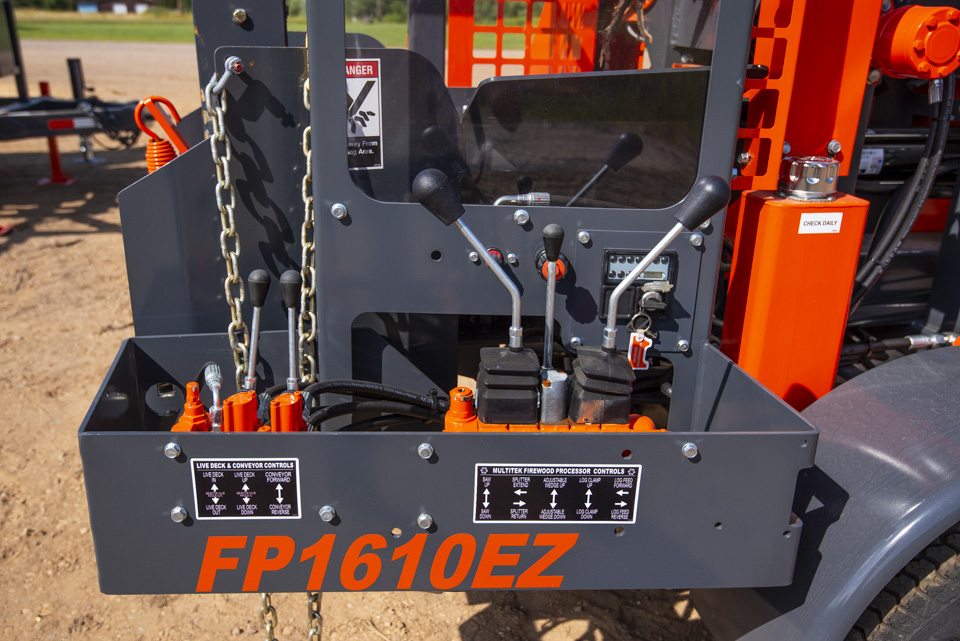

JOYSTICK CONTROLS
Two electric-over-hydraulic joysticks make the 1610EZ extremely easy to operate.  With both hands working the controls, operators can cut, split, and advance logs all at once.  Even new operators can quickly become proficient.

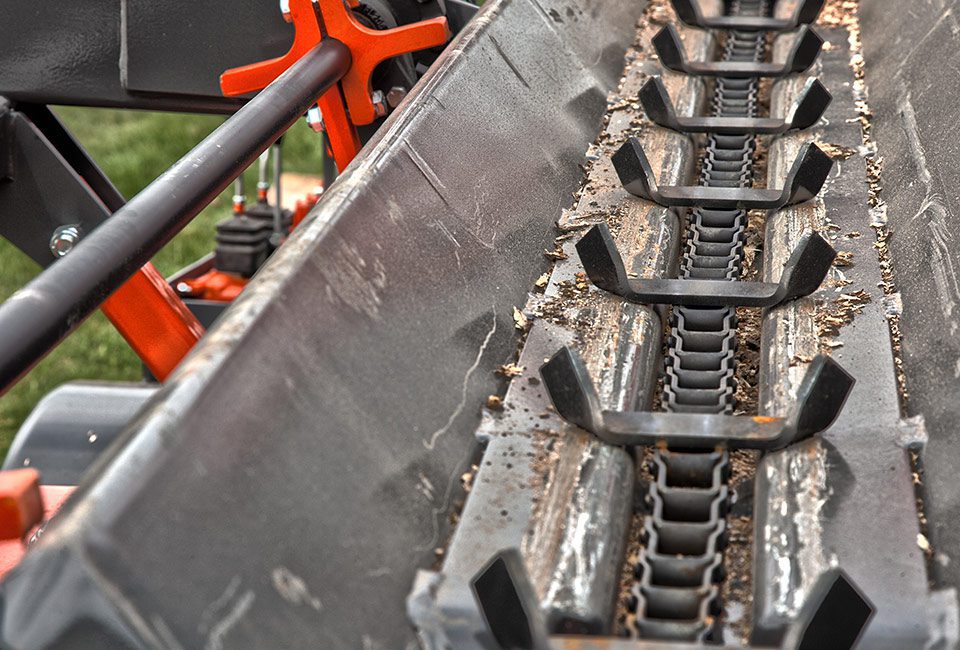

LIVE DECK LOG FLIPPERS
The 1610EZ features log flippers on its live deck to ensure logs never get stuck.  The log flippers grab the log at the edge of the live deck and aid their roll into the trough.  This makes it possible to load crooked or skinny logs without a problem.

POWER FOLDING LIVE DECK
The 1610EZ features a 2-strand, power folding deck.  The deck hydraulically raises and lowers for rapid deployment with minimal labor.  This makes the machine extremely easy to transport and set up.

Specs & Options

Specifications:


HIGHLIGHTS
Average Cords Per Hour 1.5
Max Log Diameter 18″
Max Log Length 12′
GENERAL
Standard Weight 4,300 lbs
Towing Hitch 2″ Ball
Deployed Length 29′ 0″
Deployed Width 10′ 0″
Deployed Height 7′ 0″
DECK & FEED
Number of Strands 2
Max Log Length 12′
Min. Log Length 4′
Infeed Type Single Chain
CUTTER
Saw Type Barsaw
Bar Length 20″
Pitch 3/8″
Measurement System Spring Rod
SPLITTER
Splitter Opening 24″
Wedge Options 4, 6, 8 way
Cycle Time 5.2 sec.
Tonnage 22 T
OPERATOR
Controls Joysticks
Cab No
ENGINE
Horsepower 25 HP
Fuel Type Diesel
Make Kubota
WARRANTY
Parts 1 Year

Options:


Integrated 15′ Conveyor
Want to load firewood into a trommel or truck bed?  The 15′ integrated conveyor has a tough, vulcanized rubber belt that will move firewood up to 10′ high.  The integrated conveyor can easily be cranked up for towing and is foldable for compact storage.

Extra Large Splitting Chamber
Is your firewood for boiler stove use?  An extra-large splitting chamber allows longer pieces which can be more efficiently burned in a boiler.

Night Processing Light Kit
Don’t want to stop when it gets dark? The night processing light kit provides a set of 3 ultra-bright, built-in floodlights so you can keep processing until the job is done.

4, 6, or 8 Way Wedge
Are your split pieces too big?  Swap out your current wedge for a 4, 6, or 8 way wedge.  All wedge options are fully compatible and hydraulically adjustable.

Other Options
Electric Conveyor Winch


Additional Accessories
