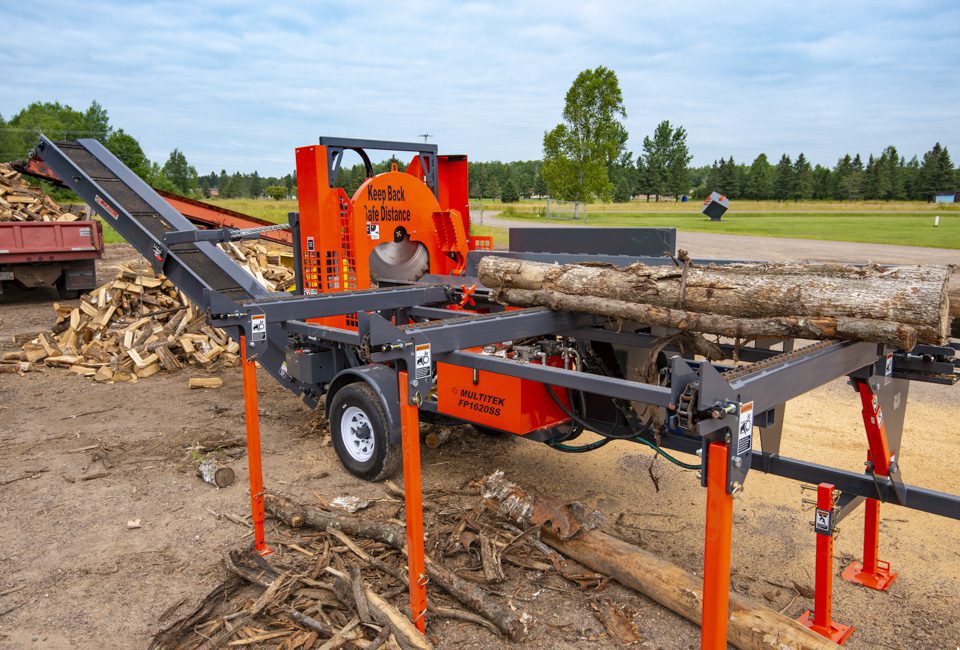

1620SS
Multitek’s 1620SS is made for mobility, speed, and ease of use. If you want ultra-fast processing combined with ease of transport, this is the machine for you!
Scroll For Details
3-5 Cords per hour
49 HP Kohler Diesel
20ft max log length
18in max log diameter
High performance guaranteed!
The 1620SS is designed to cut and split 3 to 5 cords of firewood per hour. The 1620SS is professionally engineered with just two joystick controls to be the most efficient, safest, and operator friendly mid-sized machine available on the market. With a 4 second cycle time, this machine will efficiently cut and split your hardwood logs into saleable firewood.
STANDARD FEATURES

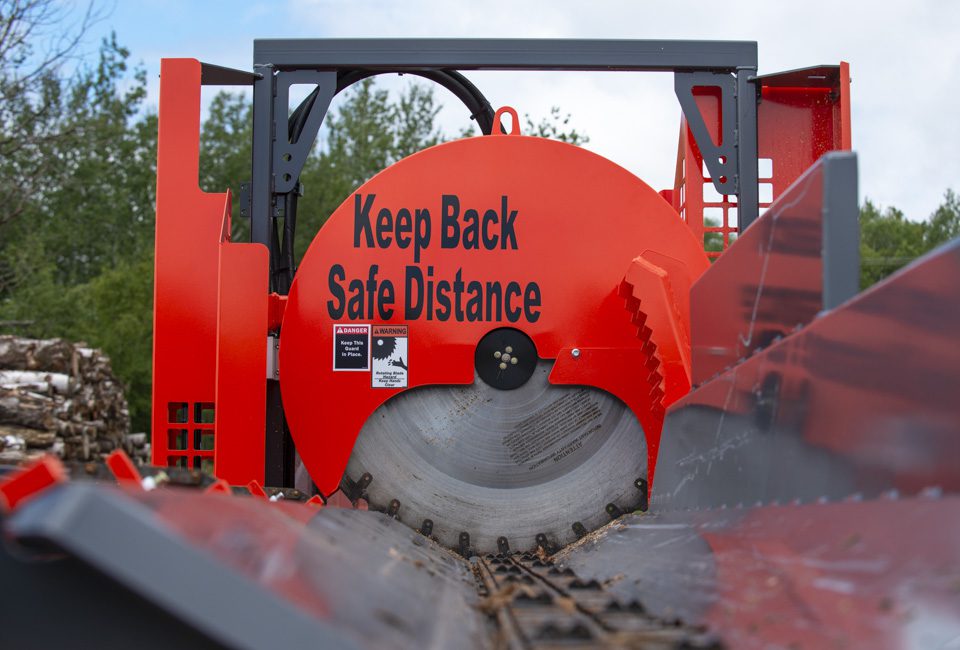

40” CIRCULAR SAW
The 40″ saw blade turns at 1400 rpm and is moved by dual piston hydraulics that keep the cutting process incredibly smooth. The 30 carbide insert teeth typically last about 500 hours of running time, essentially eliminating downtime for maintenance.
HYDRAULIC SAW BRAKE
All our circular saws come standard with a hydraulic saw brake. As soon as the saw is shut off, the brake stops the spinning blade in about 10 seconds. This makes it far safer for someone to access parts of the machine that may need attention while the processor is running. Unlike the brakes on your car, the hydraulic brake puts no wear on the circular blade, preserving the life of the saw.

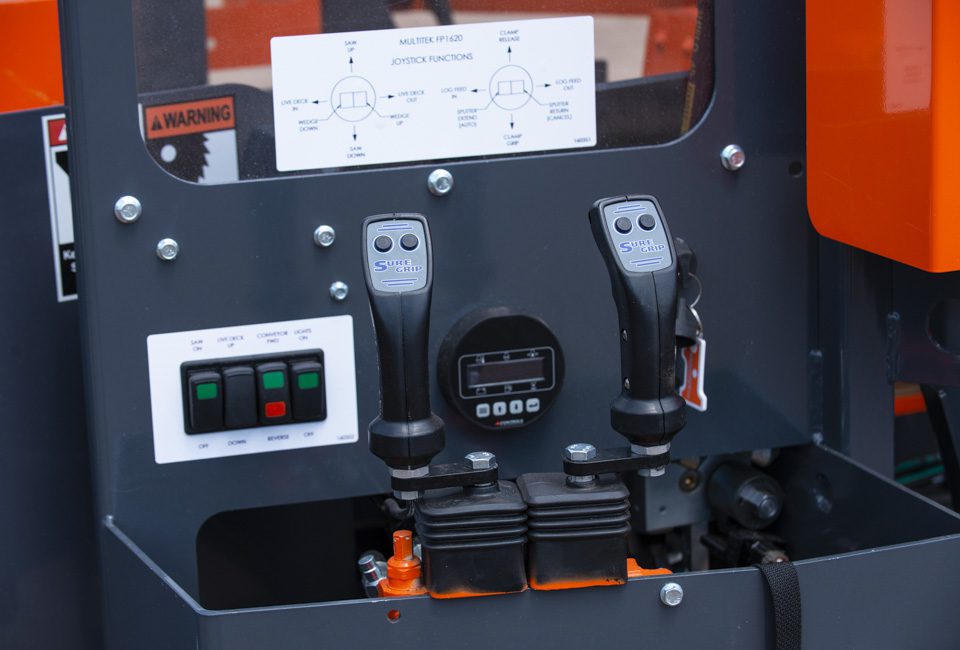

JOYSTICK CONTROLS
Two electric-over-hydraulic joysticks make the 1620SS extremely easy to operate. With both hands working the controls, operators can cut, split, and advance logs all at once. Even new operators can quickly become proficient.

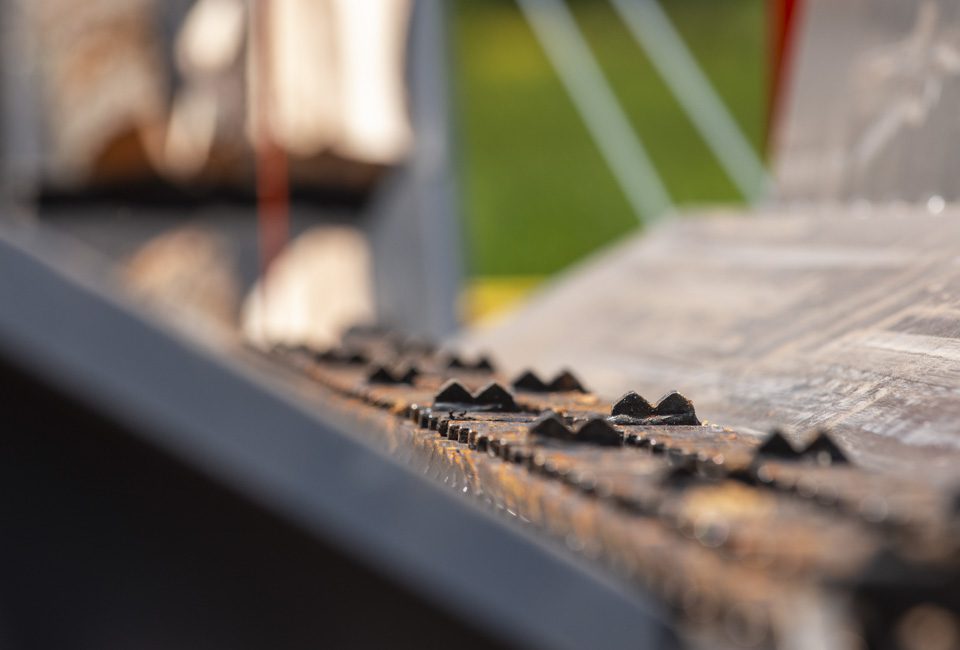

LIVE DECK LOG FLIPPERS
The 1620SS features log flippers on its live deck to ensure logs never get stuck. The log flippers grab the log at the edge of the live deck and aid their roll into the trough. This makes it possible to load crooked or skinny logs without a problem.
POWER FOLDING LIVE DECK
The 1620SS features a 3-strand, power folding deck. The deck hydraulically raises and lowers for rapid deployment with minimal labor. This makes the machine extremely easy to transport and set up.
Specs & Options
Specifications:
| HIGHLIGHTS | |
| Average Cords Per Hour | 3-5 |
| Max Log Diameter | 18″ |
| Max Log Length | 20′ |
| GENERAL | |
| Standard Weight | 6,800 lbs |
| Towing Hitch | 2 & 5/16″ Ball |
| Deployed Length | 33′ 0″ |
| Deployed Width | 10′ 8″ |
| Deployed Height | 9′ 8″ |
| DECK & FEED | |
| Number of Strands | 3 |
| Max Log Length | 20′ |
| Min. Log Length | 4′ |
| Infeed Type | Double Chain |
| CUTTER | |
| Saw Type | Circular |
| Saw Size | 40″ |
| Measurement System | Spring Rod |
| SPLITTER | |
| Splitter Opening | 24″ |
| Wedge Options | 4, 6, 8 way |
| Cycle Time | 4.0 sec. |
| Tonnage | 30 T |
| OPERATOR | |
| Controls | Joysticks |
| Cab | No |
| ENGINE | |
| Horsepower | 49 HP |
| Fuel Type | Diesel |
| Make | Kohler |
| WARRANTY | |
| Parts | 1 Year |
Options:
Integrated 16′ Pivoting Conveyor
Firewood pile getting too big? Or do you want to load into two different truck beds? The integrated 16′ Swivel Conveyor is a perfect option to make your set up even more versatile while maintaining mobility.
Integrated 15′ Conveyor
Want to load firewood into a trommel or truck bed? The 15′ integrated conveyor has a tough, vulcanized rubber belt that will move firewood up to 10′ high. The integrated conveyor can easily be cranked up for towing.
Night Processing Light Kit
Don’t want to stop when it gets dark? The night processing light kit provides a set of 3 ultra-bright, built-in floodlights so you can keep processing until the job is done.
4, 6, or 8 Way Wedge
Are your split pieces too big? Swap out your current wedge for a 4, 6, or 8 way wedge. All wedge options are fully compatible and hydraulically adjustable.
Engine Cover
The engine is the heart of your firewood processor; protect it from corrosion with a frame-mounted engine cover.
Other Options
Engine Upgrade: 49.6 HP Kubota Diesel
Mounted Tool Box Kit
5 Strand Log Deck
Spare 40″ Circular Saw Blade with Carbide Teeth
