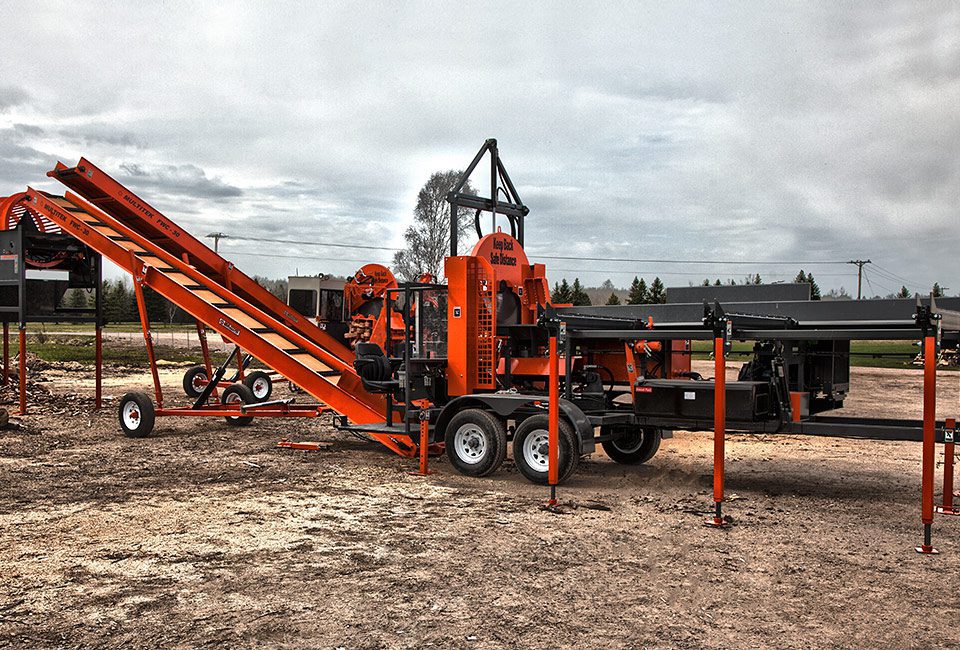

2020SS
The 2020SS is the perfect balance of mid-grade and professional processors, built for professional performance with mid-sized portability.
Scroll For Details
3-5 cords per hour
74hp Kohler diesel
20ft max log length
21in max log diameter
Mid-Sized, Professional Grade
The 2020SS presents a great value, with numerous professional features at a competitive price. Most notably, the 2020SS comes standard with an operator’s cab – a major feature for businesses that run all day, every day. Capable of a 4.5 second cycle time with large hardwood logs, the 2020SS is a professional processor in a small package.
STANDARD FEATURES

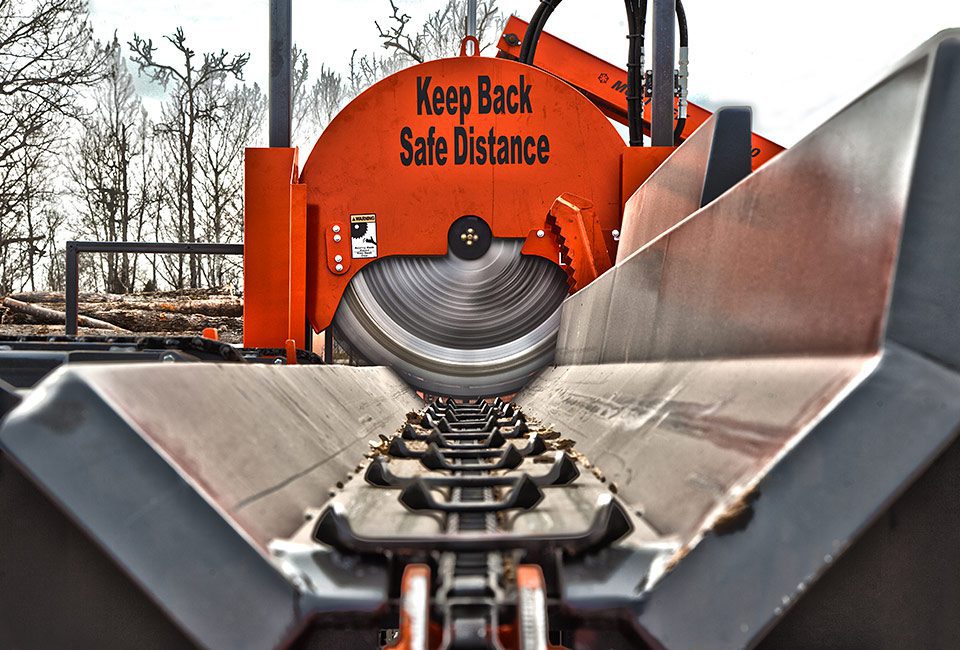

46” CIRCULAR SAW
The 2020SS comes with a 46″ carbide tipped circular saw to decrease cut cycle and reduce maintenance costs associated with bars and chains. The carbide insert teeth typically last about 500 hours of running time, essentially eliminating downtime for maintenance.
HYDRAULIC SAW BRAKE
All our circular saws come standard with a hydraulic saw brake. As soon as the saw is shut off, the brake stops the spinning blade in about 10 seconds. This makes it far safer for someone to access parts of the machine that may need attention while the processor is running. Unlike the brakes on your car, the hydraulic brake puts no wear on the circular blade, preserving the life of the saw.

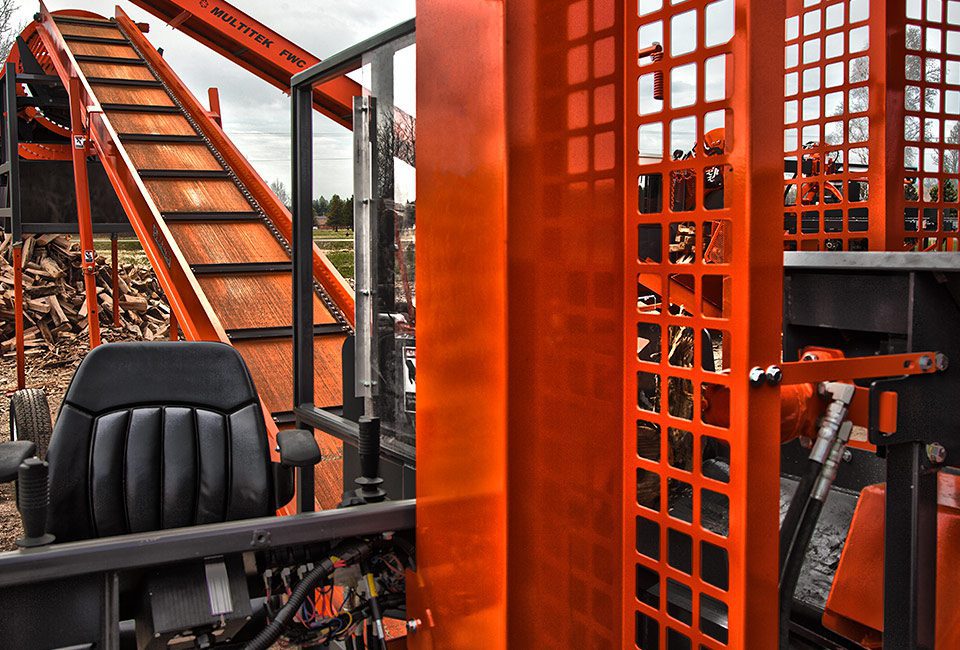

OPERATOR’S CAB
The 2020SS comes standard with a fully-equipped operator’s cab. Keep processing regardless of the weather with a comfortable suspension seat, weather-proofed enclosure, and high-visibility windows.

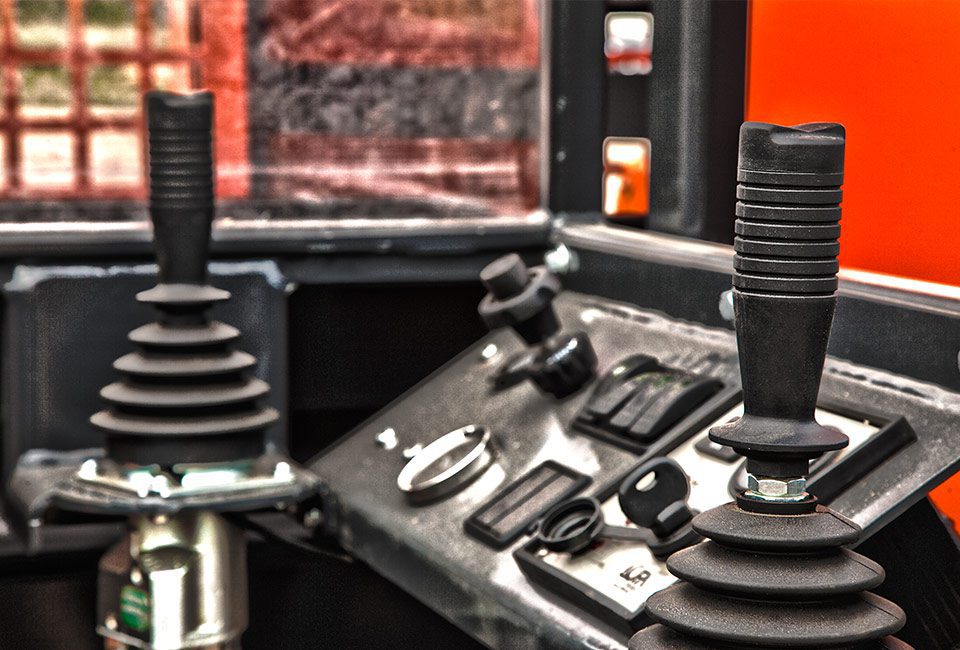

JOYSTICK CONTROLS
Two electric-over-hydraulic joysticks make the 2020SS extremely easy to operate. With both hands working the controls, operators can cut, split, and advance logs all at once. Even new operators can quickly become proficient.
LIVE DECK LOG FLIPPERS
The 2020SS features log flippers on its live deck to ensure logs never get stuck. The log flippers grab the log at the edge of the live deck and aid their roll into the trough. This makes it possible to load crooked or skinny logs without a problem.
POWER FOLDING LIVE DECK
The 2020SS features a 3-strand, power folding deck. The deck hydraulically raises and lowers for rapid deployment with minimal labor. This makes the machine extremely easy to transport and set up.
HYDRAULIC BUMP STOP
The hydraulic bump stop allows you to accurately measure your firewood length with less feathering than a spring rod. The bump stop provides positive stoppage so the log can be more quickly advanced and then cut.
Specs & Options
Specifications:
| HIGHLIGHTS | |
| Average Cords Per Hour | 3-5 |
| Max Log Diameter | 21″ |
| Max Log Length | 20′ |
| GENERAL | |
| Standard Weight | 10,200 lbs |
| Towing Hitch | 2 & 5/16″ Ball |
| Deployed Length | 25′ 0″ |
| Deployed Width | 10′ 6″ |
| Deployed Height | 12′ 6″ |
| DECK & FEED | |
| Number of Strands | 3 |
| Max Log Length | 20′ |
| Min. Log Length | 4′ |
| Infeed Type | Double Chain |
| CUTTER | |
| Saw Type | Circular |
| Saw Size | 46″ |
| Measurement System | Bump Stop |
| SPLITTER | |
| Splitter Opening | 27″ |
| Wedge Options | 4, 6, 8 way |
| Cycle Time | 4.5 sec. |
| Tonnage | 30 T |
| OPERATOR | |
| Controls | Joysticks |
| Cab | Yes |
| ENGINE | |
| Horsepower | 74 HP |
| Fuel Type | Diesel |
| Make | Kohler |
| WARRANTY | |
| Parts | 1 Year |
Options:
Night Processing Light Kit
Don’t want to stop when it gets dark? The night processing light kit provides a set of 3 ultra-bright, built-in floodlights so you can keep processing until the job is done.
10′ Deck Extension
For serious operations, a 10′ live deck extension can put less strain on the loader by allowing for more pre-loaded logs. This eliminates wait times and improves processing efficiency.
11H Bar Saw Option
For cost efficiency, the 11H bar saw provides a lower upfront cost than the standard circular saw. The 11H pitch is industrial grade, meaning it requires less maintenance than normal bar saws.
4, 6, or 8 Way Wedge
Are your split pieces too big? Swap out your current wedge for a 4, 6, or 8 way wedge. All wedge options are fully compatible and hydraulically adjustable.
Other Options
Electric Motor / Stationary Configuration
Short Log Livedeck Arm
Cabless Version
Spare 46″ Circular Saw Blade with Carbide Teeth
Additional Accessories
