Lil Beaver 14
The Lil Beaver 14 is the ideal unit for on-site firewood production. It’s small, extremely portable, user friendly, and labor saving! Perfect for tree services, home owners, rental agencies, and small firewood producers.
Scroll For Details
1 Cord Per Hour
13HP Honda Gas
10ft Max Log Length
16in Max Log Diameter
The Balance of Economy & Functionality
The Lil Beaver 14 is engineered for cost efficiency and maximum utility. Essential features like the manual saw mechanism and log lift keep the cost low while still functioning as labor saving devices. The Lil Beaver 14 also has a user friendly design that make it one of the most portable, easily deployable, and capable machines on the market.
STANDARD FEATURES

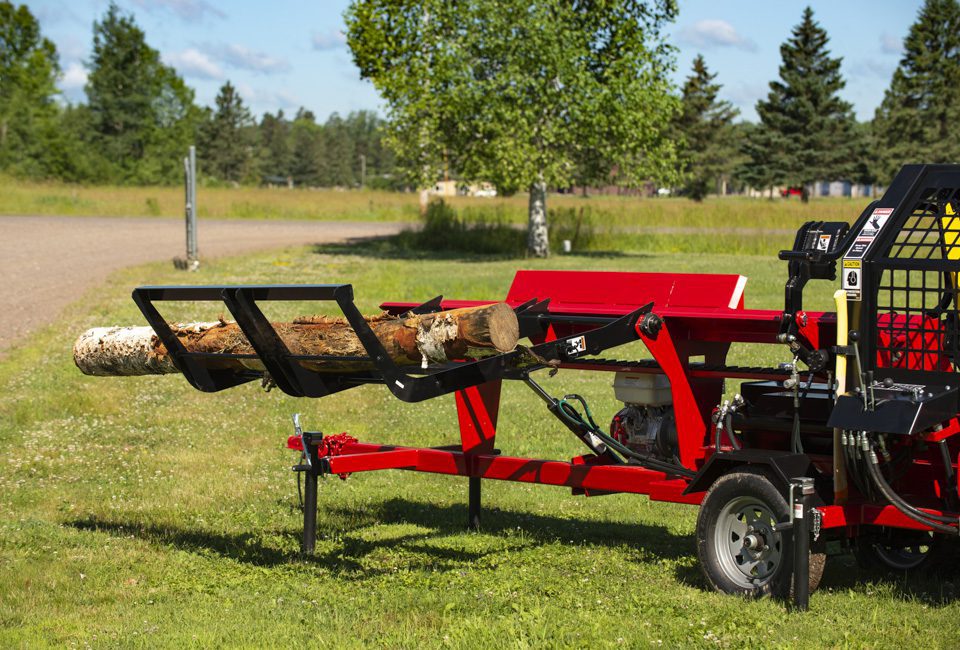

HYDRAULIC LOG LIFT
The hydraulic log lift makes the Lil Beaver 14 accessible for users who don’t have a loader. Simply roll the log onto the lift and let the machine do the hard work for you.

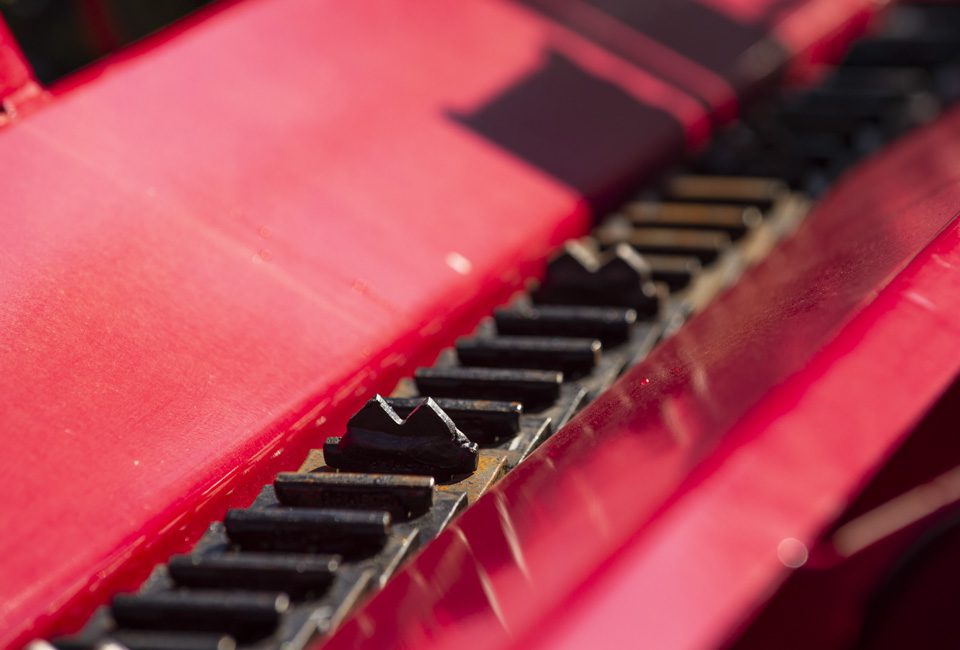

CHAIN INFEED
The Lil Beaver 14 features a chain infeed, allowing the operator to advance the log from the control station. The spiked chain even grabs crooked logs and makes processing quick and efficient.

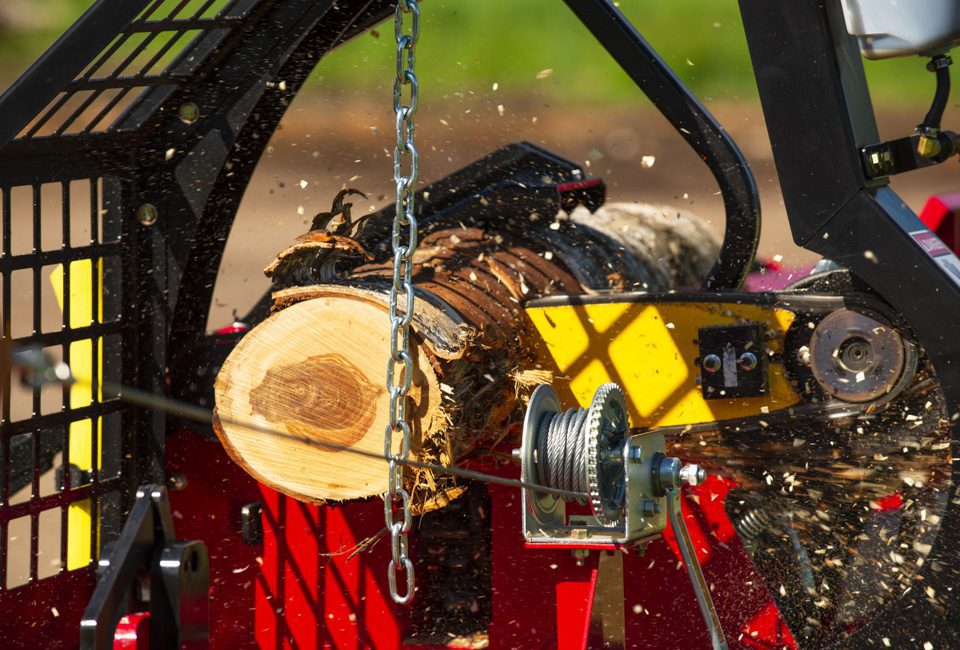

ECONOMICAL BAR SAW
The Lil Beaver 14’s bar saw is designed for extreme cost efficiency. A gravity-fed chain oil reservoir eliminates the need for a pump, and the manual saw pull makes cutting simple and effective.

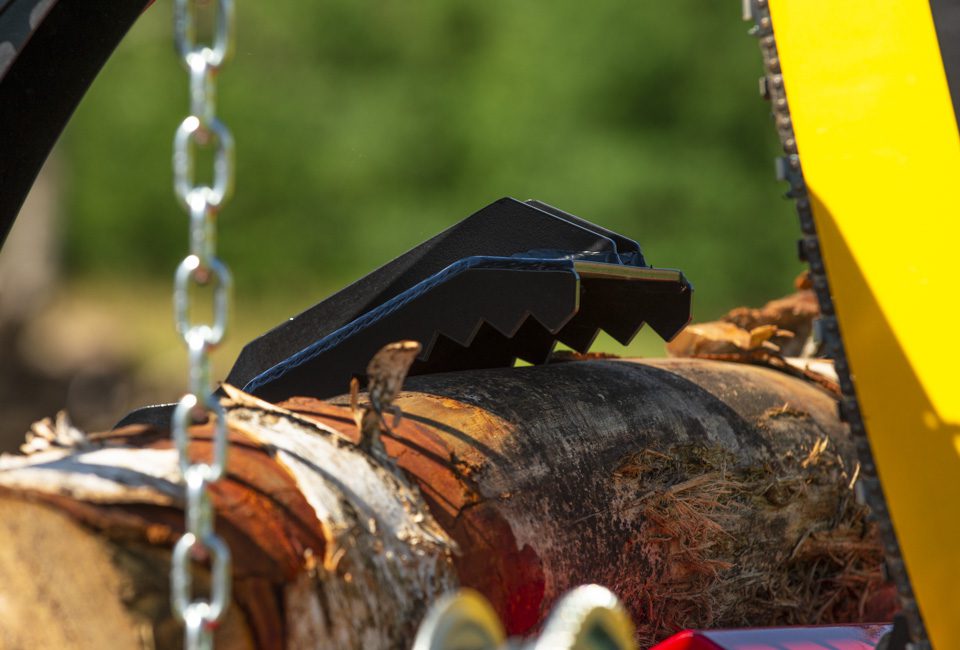

HYDRAULIC LOG CLAMP
The hydraulic log clamp is both a safety and efficiency device. It prevents logs from jumping while being cut, and it also enables that last, trim cut on each log.
QUICK DEPLOY LEGS
The Lil Beaver 14 has user friendly stabilizing legs that are extremely quick to set up. Simply move a pin, rotate the leg, and crank it to the desired length. This makes the machine one of the fastest to deploy on the market.
INTEGRATED 10′ CONVEYOR
An integrated conveyor allows for easy loading of finished firewood into a truck or trailer. A mechanical crank makes deployment and adjustment of the conveyor simple.
Specs & Options
Specifications:
| HIGHLIGHTS | |
| Average Cords Per Hour | 1 |
| Max Log Diameter | 16″ |
| Max Log Length | 10′ |
| GENERAL | |
| Standard Weight | 2,000 lbs |
| Towing Hitch | 2″ Ball |
| Deployed Length | 24′ 0″ |
| Deployed Width | 8′ 0″ |
| Deployed Height | 7′ 0″ |
| DECK & FEED | |
| Live Deck or Log Lift? | Log Lift |
| Max Log Length | 10′ |
| Min. Log Length | 32″ |
| Infeed Type | Single Chain |
| CUTTER | |
| Saw Type | Barsaw |
| Bar Length | 64 cm |
| Pitch | .404 |
| Measurement System | Hang Chain |
| SPLITTER | |
| Splitter Opening | 24″ |
| Wedge Options | 4 way |
| Cycle Time | 9 sec. |
| Tonnage | 12 T |
| OPERATOR | |
| Joystick Controls | Hydraulic |
| Saw Pull Down | Manual |
| ENGINE | |
| Horsepower | 13 HP |
| Fuel Type | Gasoline |
| Make | Honda |
| WARRANTY | |
| Parts | 1 Year |
Options:
The Lil Beaver 14 has no optional features – all features are included standard!
However, this processor can be used with other accessories, such as a trommel or stacking conveyor. See our accessories page for more information:
Additional Accessories
